Full GUI colors in iTerm, tmux and vim

Posted at Jan 13, 2020

It’s the holy grail of terminal styling, the goal that keeps you ging fiddling with your setup until you get it right. Well maybe it isn’t but it took me a while to pull of.

I’m talking about getting full GUI color support all the way from your terminal emulator (iTerm in my case), through tmux and into him. And it should work via SSH too while you’re at it.

Terminal emulator

First you need to set you’re terminal emulator up to at the $TERM environment variable to something that tells programs the emulator is able to shows colors. In iTerm you can configure this in the settings like in the screenshot here:

Setting for TERM in iTerm on macOS

Set it to something like xterm-256colors. Do not set $TERM in your .bashrc or equivalent, as you might read on some answers on StackOverflow. It’s the terminal emulator’s job to communicate it’s capabilities.

At this point, you can already check if the step works. Here’s a short bash script that I grabbed from a StackOverflow answer:

awk -v term_cols="${width:-$(tput cols || echo 80)}" 'BEGIN{
    for (colnum = 0; colnum<term_cols; colnum++) {
        r = 255-(colnum*255/term_cols);
        g = (colnum*510/term_cols);
        b = (colnum*255/term_cols);
        if (g>255) g = 510-g;
        printf "\033[48;2;%d;%d;%dm", r,g,b;
        printf "\033[38;2;%d;%d;%dm", 255-r,255-g,255-b;
        printf "%s\033[0m", substr(s,colnum%2+1,1);
    printf "\n";

If the configuration is correct, you will see a smooth rainbow like in the picture below:

Color bar with working RGB colors

If it didn’t, you will see obvious jumps in the colors. If that’s the case, you might want to make sure you didn’t mistype, or try a different terminal emulator.


Step two is tmux. For this you’ll need to add two lines to your .tmux.conf file like this:

# This is what TERM will be inside the tmux session
set-option -g default-terminal "tmux-256color"
# This tells tmux to enable full colors if TERM outside is xterm-256color
set-option -g terminal-overrides ",xterm-256color:RGB"

Some spots online have the first line read screen-256color. The screen here refers to the program screen, which tmux used to emulate here. By now, tmux supports it’s own key, and I believe programs further down check for it to optionally support things like italic fonts.

By default, there won’t be a terminfo for tmux-256color. Terminfo is a (very old) system to describe terminal capabilities to programs. Programs can use it to figure out which control sequences to send in order to achieve things like moving the cursor, or, you know, displaying colors! Essentially, $TERM from above tells programs which terminfo entry to load.

Fortunately, you can add a terminfo entry by using this file:

# You might want to verify this file does what it says on the tin, just to be safe
gunzip terminfo.src.gz
tic /tmp/terminfo.src

You can now launch a tmux session and use the script from above to see if you see the continuous colors inside it. Note that the whole server seems to need a restart for these settings to be applied correctly. You might also want to verify that $TERM is indeed what it should be with echo $TERM.


Finally, you’ll want to add these lines to your .vimrc so that vim actually starts sending the color escape codes in the first place:

let &t_8f = "\<Esc>[38;2;%lu;%lu;%lum"
let &t_8b = "\<Esc>[48;2;%lu;%lu;%lum"
set termguicolors

Now you’ll obviously need a color scheme that supports these colors so that though see them. One such theme would be Nord. They also have colors for iTerm here. You can also configure the Nord vim theme so that it prints comments in italics like this:

let g:nord_italic = 1
let g:nord_italic_comments = 1

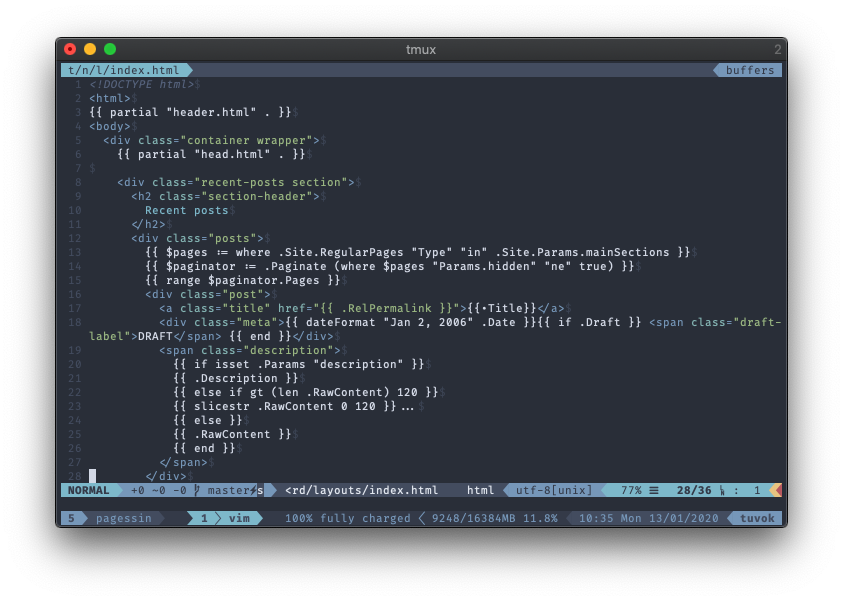

And this is what it looks like for me in the end:

iTerm + tmux + vim with the Nord theme
